SMS_Send – 0x024

0x01:前沿：

本文档是进行SMS_Send的功能，全部为命令行。

0x02：环境

ubuntu-14.04.4-desktop-amd64-LTS

PS:如果在ubuntu-16.04-desktop-i386会运行./build.sh SDR1报错，后续会研究一下原因。

0x03:代码构建

1：编译GNU ARM toolchain

####官方文档：http://osmocom.org/projects/baseband/wiki/GnuArmToolchain

sudo apt-get install build-essential libgmp3-dev libmpfr-dev
libx11-6 libx11-dev texinfo flex bison libncurses5 libncurses5-dbg
libncurses5-dev libncursesw5 libncursesw5-dbg libncursesw5-dev zlibc
zlib1g-dev libmpfr4 libmpc-dev libusb-dev libusb-0.1-4 libpcsclite1
libccid pcscd libfftw3-dev libfftw3-doc libtool shtool autoconf
automake git-core pkg-config make gcc libpcsclite-dev libtalloc-dev
git wireshark -y

mkdir armtoolchain
cd armtoolchain/
wget http://bb.osmocom.org/trac/raw-attachment/wiki/GnuArmToolchain/gnu-arm-build.3.sh
mkdir build install src
cd src
wget http://ftp.gnu.org/gnu/gcc/gcc-4.8.2/gcc-4.8.2.tar.bz2
wget http://ftp.gnu.org/gnu/binutils/binutils-2.21.1a.tar.bz2
wget ftp://sources.redhat.com/pub/newlib/newlib-1.19.0.tar.gz
cd ..
chmod +x gnu-arm-build.3.sh
./gnu-arm-build.3.sh

echo "export PATH=\$PATH:/home/ubuntu/osmocom/armtoolchain/install/bin">>/home/wenzhang/.bashrc
source /home/ubuntu/.bashrc

2：下面进行osmocom-bb的交叉编译

cd ~/osmocom/
git clone git://git.osmocom.org/libosmocore.git
cd libosmocore/
autoreconf -i
./configure
make
sudo make install

cd ~/osmocom/
git clone git://git.osmocom.org/libosmo-dsp.git
cd ~/osmocom/libosmo-dsp/
autoreconf -i
./configure
make
sudo make install
sudo ldconfig

mkdir ~/osmocom/osmocom_send
cd ~/osmocom/osmocom_send/
git clone git://git.osmocom.org/osmocom-bb.git
cd ~/osmocom/osmocom_send/osmocom-bb/
git  sylvain/testing
osmocom-bb/src/target/firmwire/Makefile
CFLAGS +=-DCONFIG_TX_ENABLE
cd ~/osmocom/osmocom_send/osmocom-bb/src
make HOST_layer23_CONFARGS=--enable-transceiver

3：OpenBTS 5.0的环境搭建

####OpenBTS的下载，一定要使用root。
官方文档：https://github.com/RangeNetworks/dev.git

#####升级Git 确定Git版本要>>= 1.8.2

sudo apt-get install software-properties-common python-software-properties -y
sudo add-apt-repository ppa:git-core/ppa
(press enter to continue)
sudo apt-get update
sudo apt-get install git -y
+++++git version >= 1.8.2_+++++

#####工具下载

su
cd /opt
git clone https://github.com/RangeNetworks/dev.git

####现在，下载所有的部件通过简单的运行./clone.sh

cd /opt/dev/
./clone.sh

####组建之前，应该选择想使用./switchto.sh编译哪个分支或标记。这里使用的5.0

./switchto.sh 5.0

####在进行下面操作时，先声明，由于编译./switchto.sh需要下载google的文件，所以这里提前下载到本地，然后修改文档内容

链接：http://pan.baidu.com/s/1pL70CzT 密码：d3t6

将coredumper-1.2.1.tar放在/opt/dev/libcoredumper
将asterisk-11.7.0.tar放在/opt/dev/asterisk

gedit /opt/dev/build.sh
#installIfMissing libzmq5
#rm -rf range-asterisk* asterisk-*

gedit /opt/dev/asterisk/build.sh
#if [ ! -f asterisk-$VERSION.tar.gz ]
#then
# sayAndDo wget http://downloads.asterisk.org/pub/telephony/asterisk/releases/asterisk- $VERSION.tar.gz
#fi
#if [ -d asterisk-$VERSION ]
#then
# sayAndDo rm -rf asterisk-$VERSION
#fi

gedit /opt/dev/libcoredumper/build.sh
#if [ ! -f coredumper-$VERSION.tar.gz ]
#then
# sayAndDo wget http://google-coredumper.googlecode.com/files/coredumper-$VERSION.tar.gz
#fi
#if [ -d coredumper-$VERSION ]
#then
# sayAndDo rm -rf coredumper-$VERSION
#fi

####组建

cd /opt/dev/liba53
sudo make install
cd /opt/dev
./build.sh SDR1

####安装

####编译包现在正处于一个新的命名的目录BUILD—sometimestamp

cd ~/opt/dev/BUILDS/TEMPTIME
sudo dpkg -i *.deb
sudo apt-get install -f
sudo dpkg -i *.deb

4:Running

####启动所必须的服务，

sudo start asterisk
sudo start sipauthserve
sudo start smqueue
sudo start openbts

osmocom:
cd /home/wenzhang/osmocom/osmocom_send/osmocom-bb/src/host/osmocon/
sudo ./osmocon -p /dev/ttyUSB0 -m c123xor ../../target/firmware/board/compal_e88/trx.compalram.bin

transceiver:
cd ~/osmocom/osmocom_send/osmocom-bb/src/host/layer23/src/transceiver/
sudo ./transceiver 80

OpenBTS:
cd /opt/dev/openbts/apps
sudo ./OpenBTSCLI

####在OpenBTS命令行下修改OpenBTS的配置文件，重点修改下面5个

devconfig GSM.Radio.NeedBSIC 1
config GSM.RACH.MaxRetrans 3
config GSM.RACH.TxInteger 8
config GSM.Radio.C0 ARFCN
config Control.LUR.OpenRegistration .*
#config Control.LUR.OpenRegistration.Message Fuck you you're a sucker
#config Control.LUR.OpenRegistration.ShortCode 10086

####配置完成后，需要重新启动一下各个服务

sudo restart asterisk
sudo restart sipauthserve
sudo restart smqueue
sudo restart openbts

0x04:运行：

####现在就可以手机发短信了

OpenBTSCLI
$ tmsis   ---查看当前连入基站的手机IMIE号

OpenBTSCLI
$ sendsms YOUTMSIS number messege

———————————-Enjoy————————————————–

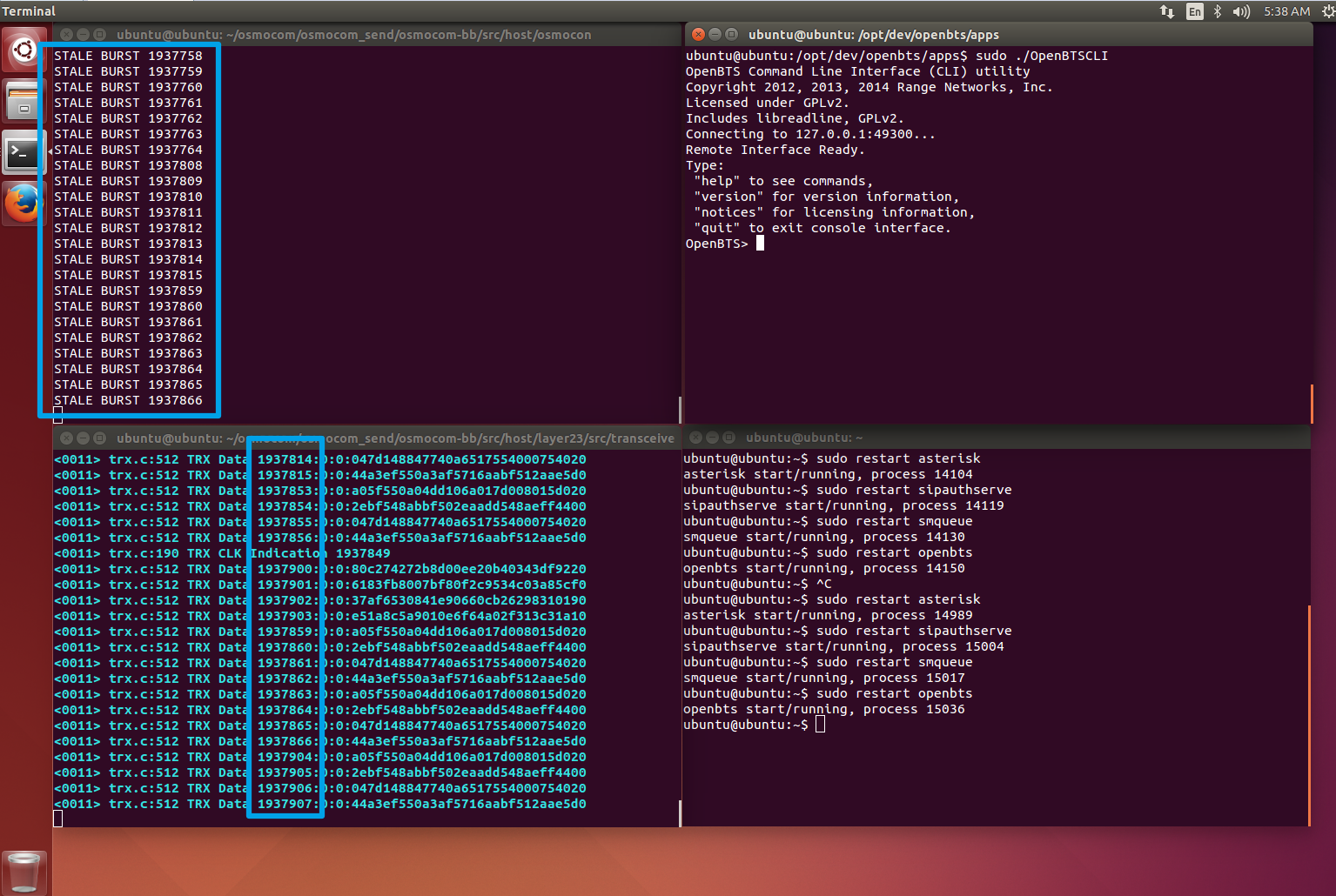

必须出现如图2的内容才说明成功的开启，出现图1就是没成功开始，解决办法，多次的调试sudo ./transceiver * // 换一下*.直到出现图2的情景
